推荐模组

深圳市鸿宇智联有限公司专业从事无线音频无线互联网及物联网相关的射频系列模组的研发、生产、销售和服务

FT1731BUV2

FT1731BUV2 is a highly integrated Module 802.11a/b/g/n 1T1R WLAN with USB 2.0 multi-function. It combines a WLAN MAC, a 1T1R capable WLAN baseband and WLAN RF in a chip. The FT1731BUV2 provides a complete solution for a high-performance integrated wireless LAN controller

了解详细

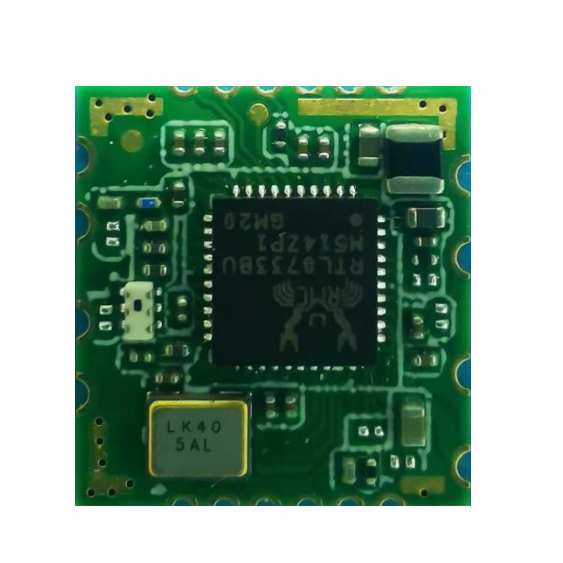

FT1733BUV1

FT1733BUV1 module support 802. 11a/b/g/n 1T1R WLAN, and an integrated Bluetooth 5.2 combo with USB 2.0 multi-function. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol Stack (LM, LL, and LE), BT Baseband, modem, and WLAN/BT RF in a combo chip. The FT1733BUV1 provides a complete solution for a high-performance integrated wireless LAN and Bluetooth controller. The FT1733BUV1 WLAN baseband implements Orthogonal Frequency Division Multiplexing (OFDM) with 1transmit and 1receive path and is compatible with the 802.11n specification. Features include one spatial stream transmission, short guard interval (GI) of 400ns, spatial spreading, and transmission over 20MHZ and 40 MHZ bandwidth

了解详细

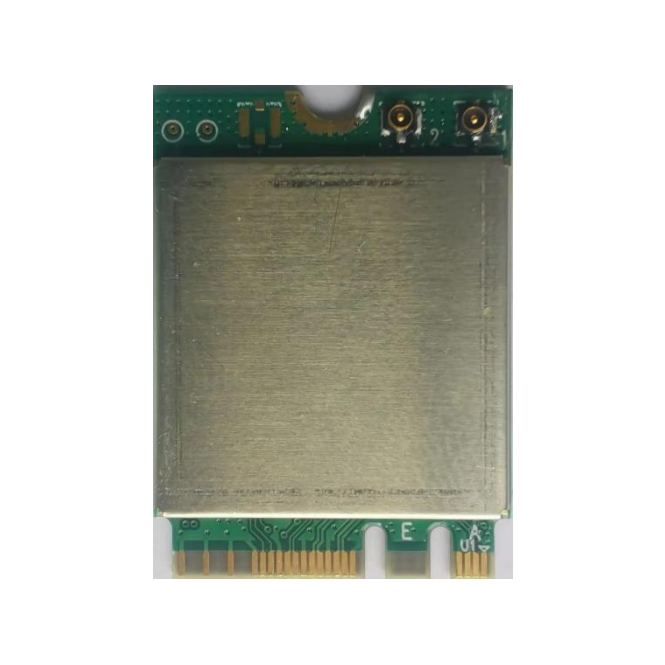

FT1852BEV1

The FT1852BEV1 is a highly integrated single-chip that support 2-stream 802. 11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 5 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN base band, and RF in a single chip. The RTL8852BE provides a complete solution for a high-performance integrated wireless and Bluetooth device. The FT1852BEV1 baseband implements Multi-user Multiple Input,Multiple Output(MU-MIMO)Orthogonal Frequency Division Multiplexing (OFDM) with two transmit and two receive paths (2T2R). Features include two spatial stream transmissions, short Guard Interval (GI), spatial spreading, and support for variant channel bandwidth. Moreover, FT1852BEV1 provides one spatial stream space-time block code (STBC), Transmit Beamforming (TxBF) and Low Density Parity Check (LDPC) to extend the range of transmission. At the receiver, extended range and good minimum sensitivity is achieved by having receiver diversity up to 2 antennas. As the recipient, the FT1852BEV1 also supports explicit sounding packet feedback that helps senders with beamforming capability.

了解详细

WBR3-C

WBR3-C是一款低功耗嵌入式 Wi-Fi+蓝牙模组。它由一个高集成度的无线射频芯片 RTL8720CF(W701-VA2-CG&W701H-VT2-CG)构成，内置了 Wi-Fi 网络协议栈和丰富的库函数。WBR3-C 还包含低功耗的 KM4 MCU，WLAN MAC，1T1R WLAN，最高主频 100MHz，内置 256K SRAM ，芯片内置 2Mbyte flash 和丰富的外设资源。 WBR3-C是一个 RTOS 平台，集成了所有 Wi-Fi MAC 以及 TCP/IP 协议的函数库。用户可以基于这些开发满足自己需求的嵌入式 Wi-Fi 产品。

了解详细

CBU-C

CBU 是一款低功耗嵌入式Wi-Fi 模组。它由一个高集成度的无线射频芯片BK7231N 和少量外围器件构成，可以支持AP 和STA 双角色连接，并同时支持低功耗蓝牙连接。 CBU 内置运行速度最高可到 120 MHz 的 32-bit MCU，内置2Mbyte 闪存和 256 KB RAM。拥有丰富的外设，如 PWM、UART、SPI。多达五路的 32 位 PWM 输出使芯片非常适合高品质的 LED 控制

了解详细

CB2S-C

CB2S 是一款低功耗嵌入式Wi-Fi 模组。它由一个高集成度的无线射频芯片BK7231N 和少量外围器件构成，可以支持AP 和STA 双角色连接，并同时支持低功耗蓝牙连接。 CB2S 内置运行速度最高可到 120 MHz 的 32-bit MCU，内置2Mbyte 闪存和 256 KB RAM。CB2S 拥有丰富的外设，如 PWM、UART。多达五路的 32 位 PWM 输出使芯片非常适合高品质的 LED 控制

了解详细
